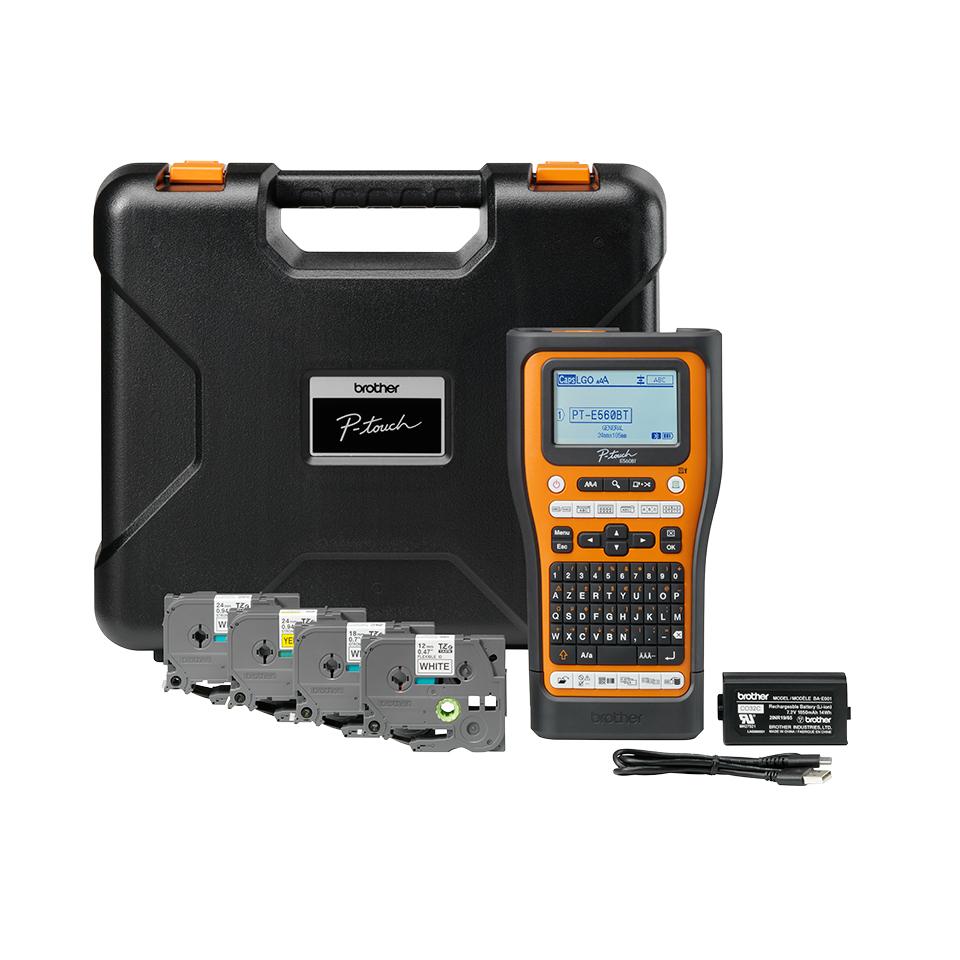

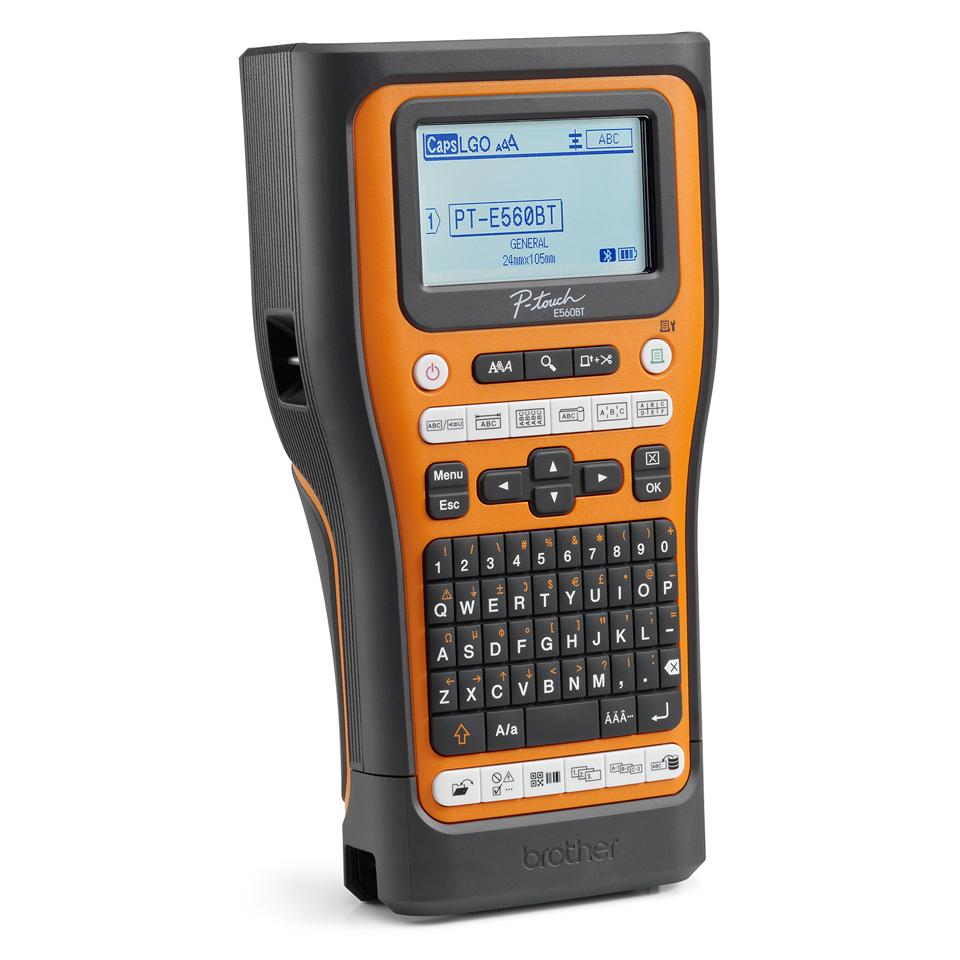

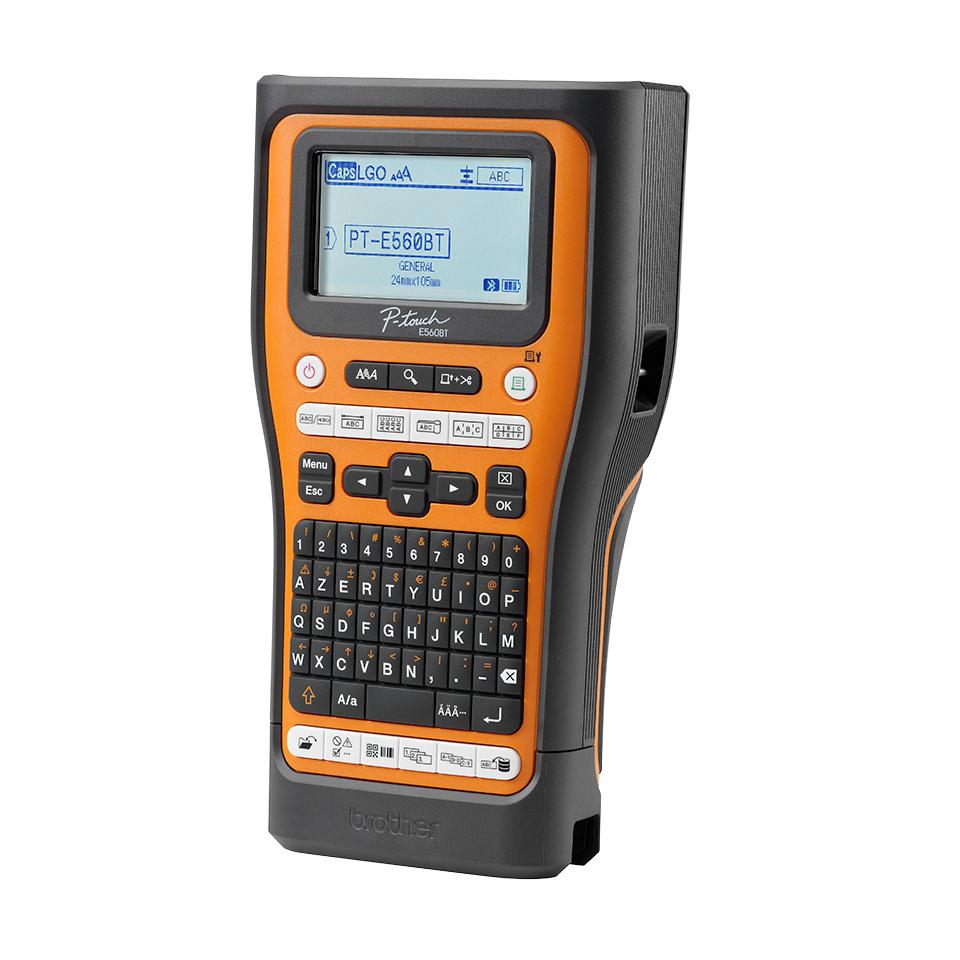

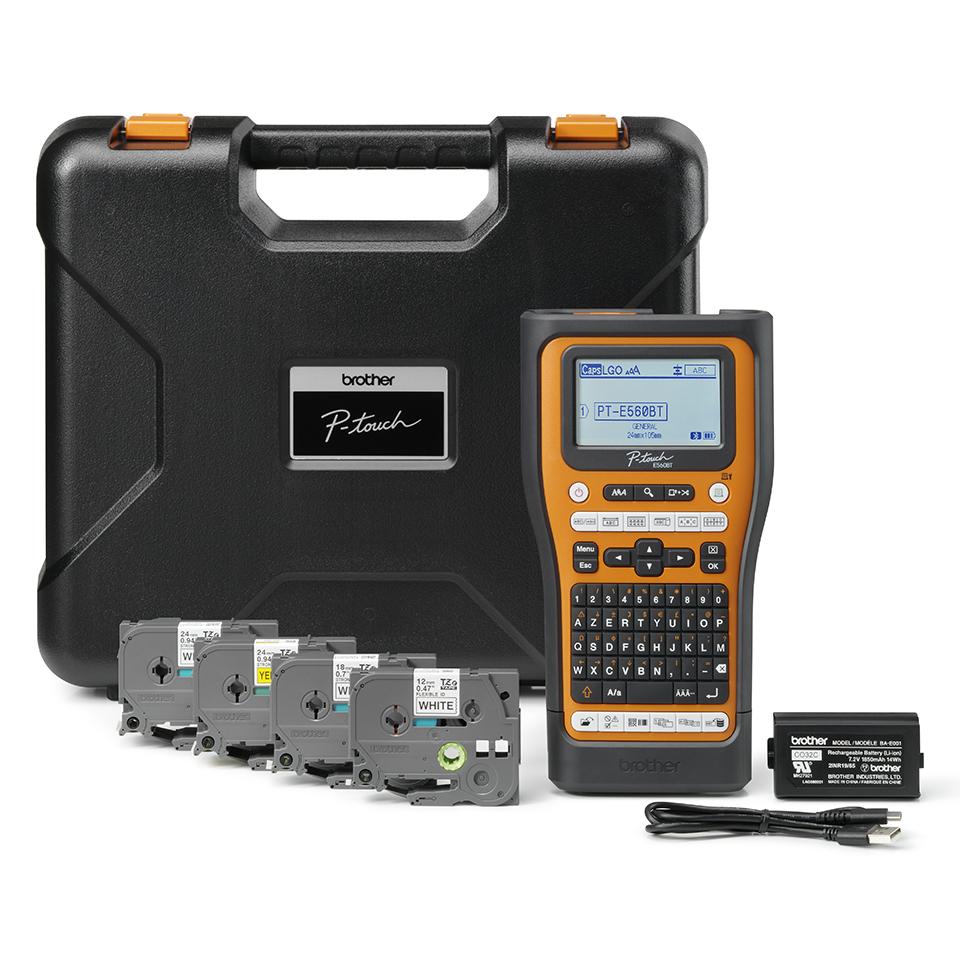

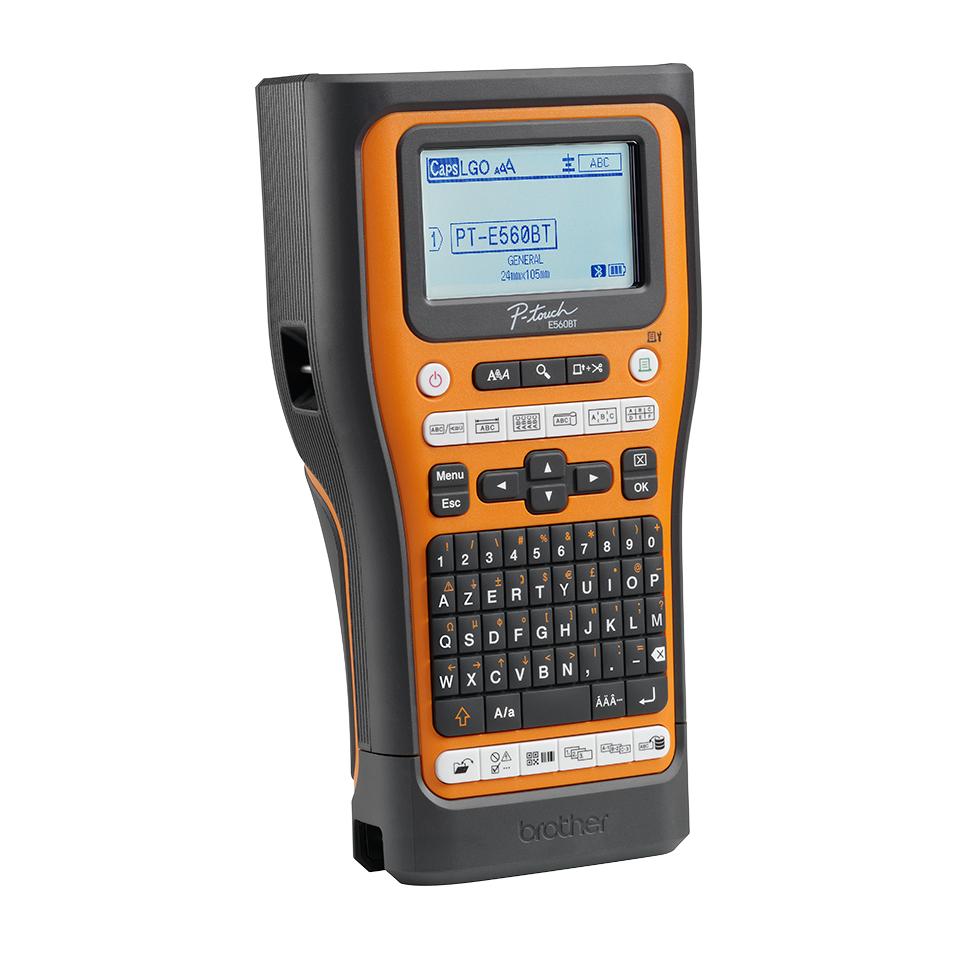

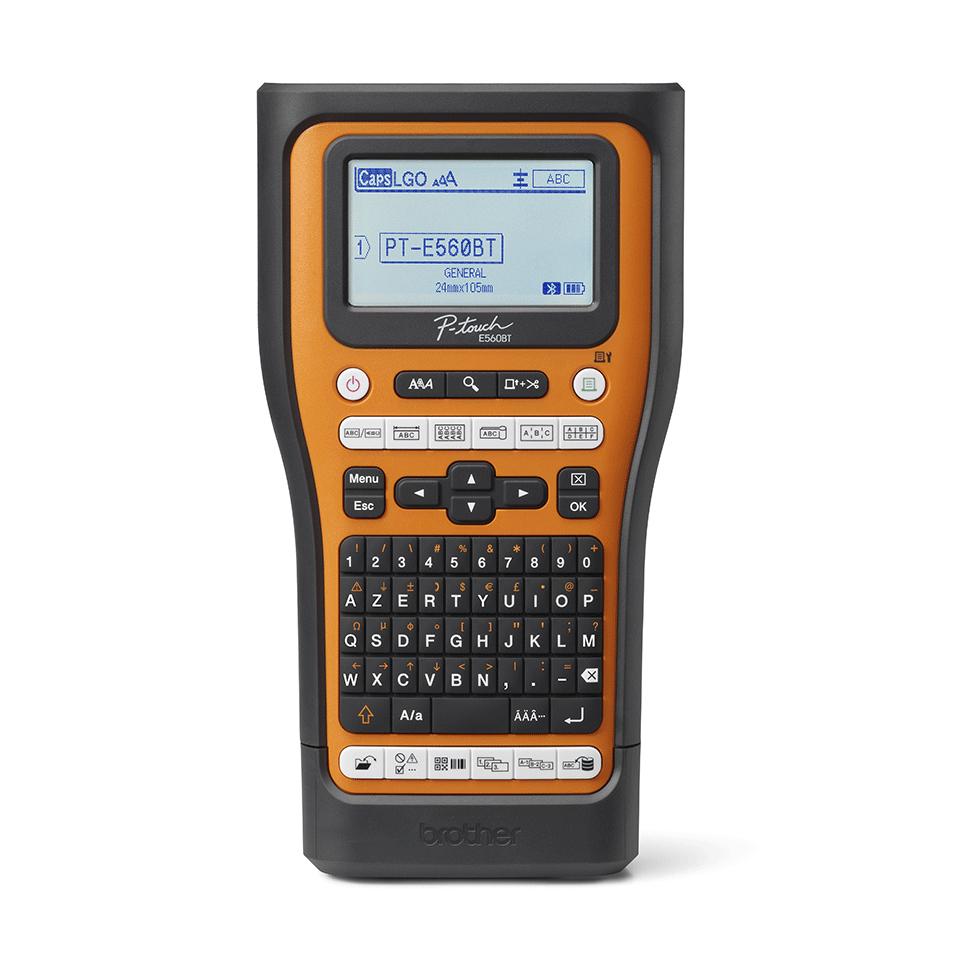

Brother PT-E560BTSP label printer

UPC: 4977766835756

Brother logo

Product In Stock
Order before 23.59 and receive your package tomorow.

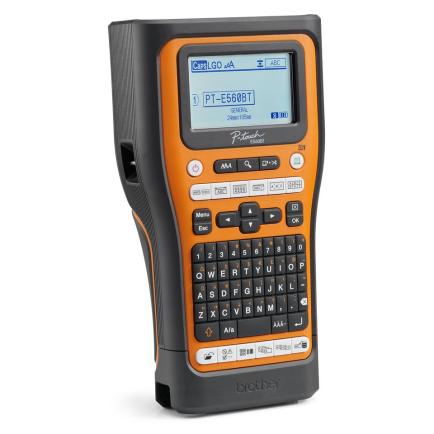

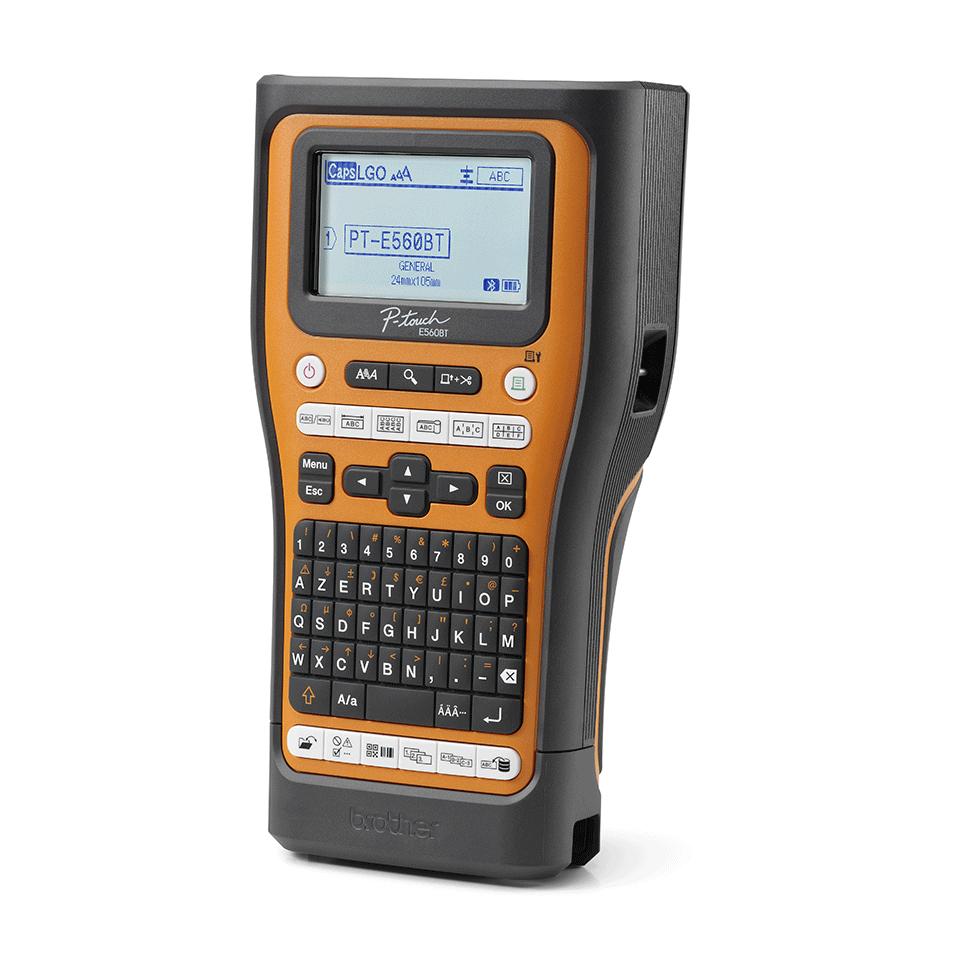

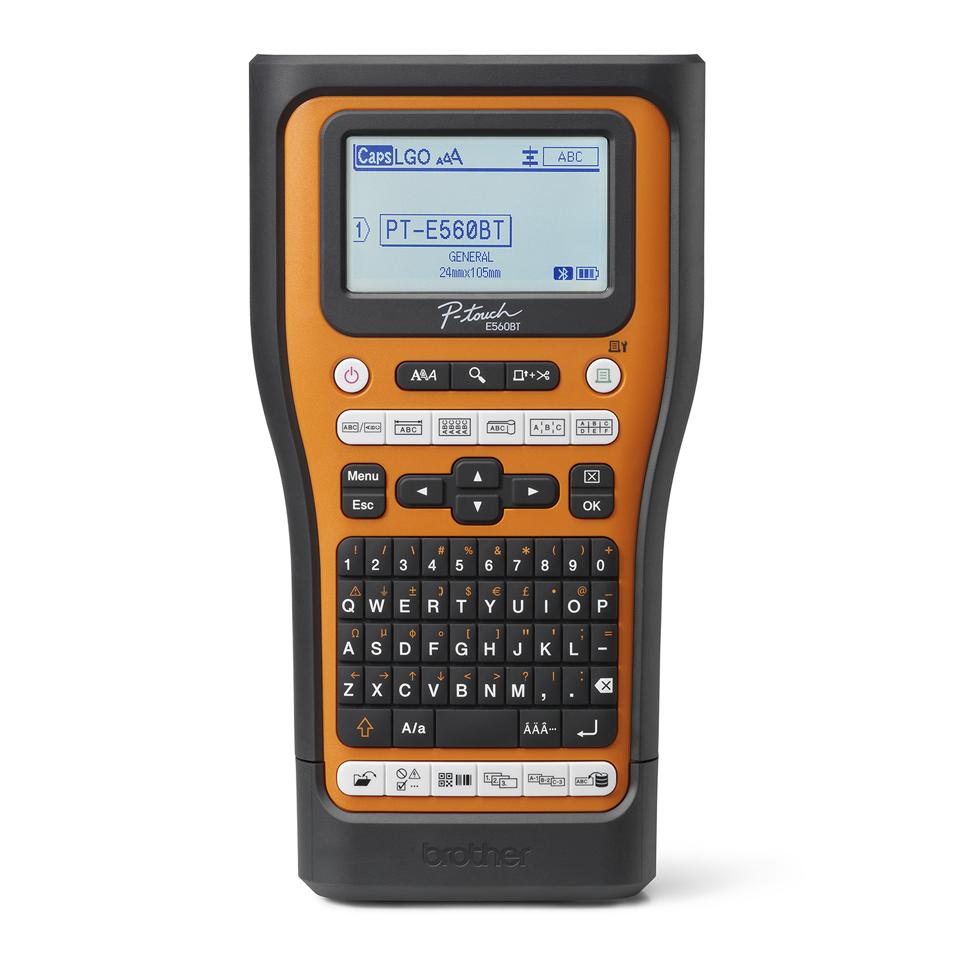

Brother PT-E560BTSP label printer

Clear identification and safety are critical for any electrical installation. Equipped with a large graphic display and dedicated functions for the most common labelling tasks, including consumer units, distribution boards, conduits, sockets, switchgear and cable identification, the PT-E560BT is your ideal partner for producing long-lasting, durable labels on-demand. Save time on site with the integrated Bluetooth which offers the flexibility to connect to a PC, smartphone or tablet and print labels using Brother's Pro Label Tool App and P-touch Editor software. With a range of ready-made industry templates that meet all the latest wiring regulations, you can be sure to achieve a professional and compliant finish.Compatible with Pro Tapes - Brother's specialist range of fit-for-purpose tapes that offer resistance to water, chemicals, abrasion and extreme temperatures - so your safety warnings, guidance notices and identification labels will stick around wherever you apply them.

Brother PT-E560BTSP label printer Specifications

Printing

Number of printable dots
128 dot
Print technology
Thermal transfer
Colour
No
Maximum resolution
180 x 180 DPI
Print speed
30 mm/sec
Maximum printing width
2.4 cm
Maximum print height
1.8 cm
Vertical printing
Yes
Mirror printing
Yes
Rotated printing
Yes

Paper handling

Half-cutter
Yes
Autocutter
Yes

Performance

Number of characters
684
Built-in barcodes
CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E
Number of symbols
476
Number of fonts
14
Tape type
HSE/TZe
Number of printing lines (max)
7
Underline
Yes

Design

Keyboard number of keys
70
Product colour
Black, Orange
Built-in display
Yes
Display
LCD
Backlight display
Yes
Keyboard layout
QWERTY

Packaging content

Wrist strap included
Yes
Cables included
USB
Batteries included
Yes
Quick start guide
Yes
Warranty card
Yes

Technical details

Multi-block
99
PC connection
USB 3.2 Gen 1 (3.1 Gen 1)
Pallet type
1200 x 1000 mm

Ports & interfaces

Connectivity technology
Wired & Wireless
Ethernet LAN
No
Wi-Fi
No
Bluetooth
Yes
Bluetooth version
5.0
USB port
Yes

Power

Battery type
Built-in battery
Number of batteries supported
1
Auto power off
Yes
Power source type
Battery

Battery

Battery technology
Lithium-Ion (Li-Ion)
Rechargeable battery
Yes

System requirements

Windows operating systems supported
Windows 10, Windows 11
Mac operating systems supported
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mobile operating systems supported
Android 10, Android 9.0, iOS 11.0, iOS 12, iOS 13, iOS 15, iOS 16

Weight & dimensions

Width
132 mm
Depth
244 mm
Height
80 mm
Weight
1.05 kg

Packaging data

Package width
126 mm
Package depth
334.4 mm
Package height
393 mm
Package weight
3.1 kg

Logistics data

Pallet gross height
16.3 cm
Pallet gross weight
296.9 kg
Master (outer) cases per pallet
24 pc(s)
Master (outer) cases per pallet layer
6 pc(s)
Layers per pallet
4 pc(s)
Products per pallet
72 pc(s)

Other features

Memory capacity
1800 characters
Print preview
Yes
Label memory
99 label(s)
Number of frames
7
Languages support
Multi
